KET ofrece insertos para elevadores de tipo resbaladizo, incluyendo elevadores BJ y elevadores/arácnidos Varco.
Estilo: No Direccional
Estilo: Key-Grit (CRA)
INSERTOS PARA – SERIE LYT (CUERPO DE 2-1/16)
| Tama a de la Herramienta | Tama a de la Tubera1a | Este1ndar | KEY-GRIT | Peso | Nfam. Ref. |
| 2-1/16 | 2-1/16 y 2 | E28772 | E28772-G1 | 0.45 | 28772 |
| 2-1/16 | 1-1/2 (1.900) | E28775 | E28775-G1 | 0.50 | 28775 |
| 2-1/16 | 1-1/4 (1.660) | E28778 | E28778-G1 | 0.63 | 28778 |
| 2-1/16 | 1 (1.315) | E28749 | E28749-G1 | 0.75 | 28749 |
| 2-1/16 | 3/4 (1.050) | E29370 | E29370-G1 | 0.75 | 29370 |
Estilo: No Direccional
Estilo: Key-Grit (CRA)
INSERTOS PARA – SERIES MYT, YT, y HYT (CUERPO DE 2-7/8)
| Tama a de la Herramienta | Tama a de la Tubera1a | Este1ndar | KEY-GRIT | Peso | Nfam. Ref. |
| 2-7/8 | 2-7/8 | E24773 | E24773-G1 | 0.75 | 24773 |
| 2-7/8 | 2-3/8 | E29255 | E29255-G1 | 1 | 29255 |
| 2-7/8 | 2-1/16 y 2 | E29256 | E29256-G1 | 1.13 | 29256 |
| 2-7/8 | 1-1/2 (1.900) | E29257 | E29257-G1 | 1.25 | 29257 |
| 2-7/8 | 1-1/4 (1.660) | E29258 | E29258-G1 | 1.38 | 29258 |
| 2-7/8 | 1 (1.315) | E29259 | E29259-G1 | 1.44 | 29259 |
| 2-7/8 | 3/4 (1.050) | E29259-1 | E29259-1-G1 | 1.5 | 29259-1 |
Estilo: No Direccional
Estilo: Key-Grit (CRA)
INSERTOS PARA – SERIES “YT & HYT” (CUERPO DE 3-1/2”)
| Tamaño de la Herramienta | Tamaño de Tubo | Estándar | KEY-GRIT | Peso | Ref.# |
| 3-1/2″ | 3-1/2″ | E24774-ND | E24774-G1 | 0.5 | 24774 |
| 3-1/2″ | 2-7/8″ | E30358-ND | E30358-G1 | 0.75 | 30358 |
| 3-1/2″ | 2-3/8″ | E30358-23-ND | E30358-23-G1 | 0.85 | 30358-23 |

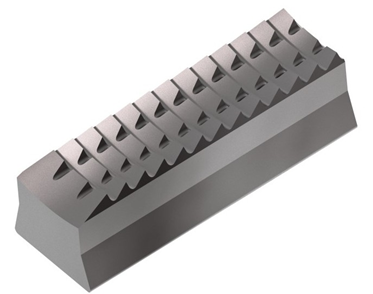

Estilo: Direccional

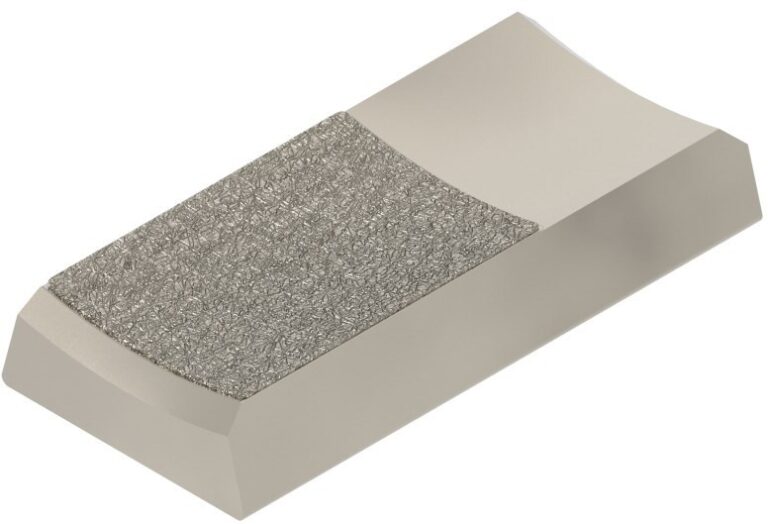

Estilo: Key-Grit (CRA)
INSERTOS PARA – SERIES “HYC-XR” (CUERPO DE 9-5/8”)
| Tamaño de la Herramienta | Tamaño de Tubo | Estándar | KEY-GRIT | Peso | Ref.# |
| 9-5/8″ | 7-5/8″ | E20-103-76 | E20-103-76-G1 | 0.52 | E20-103-76 |
| 9-5/8″ | 8-5/8″ | E20-103-86 | E20-103-86-G1 | 0.49 | E20-103-86 |
| 9-5/8″ | 8-3/4″ | E20-103-875 | E20-103-875-G1 | 0.48 | E20-103-875 |
| 9-5/8″ | 9-3/8″ | E20-103-937 | E20-103-937-G1 | 0.29 | E20-103-937 |
| 9-5/8″ | 9-5/8″ | E20-103-96 | E20-103-96-G1 | 0.22 | E20-103-96 |
Estilo: Direccional
Estilo: Key-Grit (CRA)
Estilo: No Direccional
INSERTOS PARA BJ YC HASTA 1000 TONELADAS
| Tamaño de la Herramienta | Tamaño de Tubo | Estándar | KEY-GRIT | ND | Peso | Ref.# |
| 3-1/2″ | 2-3/8″ | E24777 | E24774-G1 | E24774-ND | 1.00 | 24777 |
| 3-1/2″ | 2-7/8″ | E25780 | E25784-G1 | E25784-ND | 0.87 | 25780 |
| 3-1/2″ | 3-1/2″ | E16441 | E16441-G1 | E16441-ND | 0.50 | 16441 |
| 4″ | 4″ | E16442 | E16442-G1 | E16442-ND | 0.50 | 16442 |
| 4-1/2″ | 3-1/2″ | E24779 | E24774-G1 | E24774-ND | 1.06 | 24779 |
| 4-1/2″ | 4″ | E24781 | E24784-G1 | E24784-ND | 0.81 | 24781 |
| 4-1/2″ | 4-1/2″ | E16408 | E16408-G1 | E16408-ND | 0.50 | 16408 |
| 5-1/2″ | 4-1/2″ | E24785 | E24784-G1 | E24784-ND | 1.06 | 24785 |
| 5-1/2″ | 5″ | E24783 | E24784-G1 | E24784-ND | 0.81 | 24783 |
| 5-1/2″ | 5-1/2″ | E16407 | E16407-G1 | E16407-ND | 0.50 | 16407 |
| 7″ | 7″ | E16407 | E16407-G1 | E16407-ND | 0.50 | 16407 |
| 7-5/8″ | 7″ | E16407 | E16407-G1 | E16407-ND | 0.50 | 26750 |
| 7-5/8″ | 7-5/8″ | E16407-HYC | E16407-HYC-G1 | E16407-HYC-ND | 0.50 | 16407 |
| 7-5/8″ | 7-3/4″ | E350011 | E35004-G1 | E35004-ND | 350011 | |
| 8-5/8″ | 7-5/8″ | E25474 | E25474-G1 | E25474-ND | 1.06 | 25474 |
| 8-5/8″ | 8-5/8″ | E15660 | E15660-G1 | E15660-ND | 0.50 | 15660 |
| 9-5/8″ | 8-5/8″ | E25474 | E25474-G1 | E25474-ND | 1.06 | 25474 |
| 9-5/8″ | 9-5/8″ | E15660 | E15660-G1 | E15660-ND | 0.50 | 15660 |
| 10-3/4″ | 9-5/8″ | E33249 | E33249-G1 | E33249-ND | 1.13 | 33249 |
| 11-3/4″ | 10-3/4″ | E25474 | E25474-G1 | E25474-ND | 1.06 | 25474 |
| 12-1/2″ | 11-3/4″ | E39289 | E39289-G1 | E39289-ND | 0.94 | 39289 |
| 13-3/8″ | 13-3/8″ | E15660 | E15660-G1 | E15660-ND | 0.50 | 15660 |
| 14″ | 14″ | E15660 | E15660-G1 | E15660-ND | 0.50 | 15660 |
| 16″ | 16″ | E15660 | E15660-G1 | E15660-ND | 0.50 | 15660 |
| 20″ | 18-5/8″ | E32561 | E32561-G1 | E32561-ND | 1.50 | 32561 |
| 20″ | 20″ | E15660 | E15660-G1 | E15660-ND | 0.50 | 15660 |
CANTIDADES REQUERIDAS PARA BJ YC HASTA 1000 TONELADAS
| Tamaño de la Herramienta | YC | HYC | Número de Inserciones Requeridas | 14″ | |||
|---|---|---|---|---|---|---|---|
| 7-5/8″ 175 Toneladas | 13-3/8″ 350 Toneladas | 10-3/4″ 500 Toneladas | 13-3/8″ 500 Toneladas | 1000 Toneladas | |||
| 3-1/2″ | 18 | ||||||
| 4″ | 16 | ||||||
| 4-1/2″ | 16 | 24 | 27 | ||||
| 5-1/2″ | 16 | 36 | 27 | 36 | 45 | 45 | |
| 7″ | 24 | 48 | 48 | 60 | 60 | ||
| 7-5/8″ | 48 | 45 | 60 | 75 | 75 | ||
| 8-5/8″ | 60 | 75 | |||||
| 8-7/8″ | 108 | ||||||
| 9-5/8″ | 72 | 90 | 90 | ||||
| 10-3/4″ | 72 | 90 | |||||
| 10-7/8″ | 126 | ||||||
| 11-3/4″ | 72 | 105 | |||||
| 12-1/2″ | 144 | ||||||
| 13-3/8″ | 84 | 135 | |||||
| 14″ | 162 | ||||||
| Tamaño de la Herramienta | Número de Inserciones Requeridas | |||||
|---|---|---|---|---|---|---|
| 14″ 200 Toneladas | 14″ 350 Toneladas | 14″ 500 Toneladas | 24″ 750 Toneladas | 24″ 1000 Toneladas | 24″ 500 Toneladas | |
| 3 1/2” | 12/12B | |||||
| 3 1/2” | 12/12B | |||||
| 3 1/2” | 24 | |||||
| 4 1/2” | 16/16B | |||||
| 4 1/2” | 16/16B | |||||
| 4 1/2” | 32 | |||||
| 5 1/2” | 16/16B | 24/16B | 32/16B | |||
| 5 1/2” | 16/16B | 24/16B | 32/16B | |||
| 5 1/2” | 32 | 40 | 48 | |||
| 7 5/8” | 24/24B | 36/24B | 48/24B | 60/24B | ||
| 7 5/8” | 24/24B | 36/24B | 48/24B | 60/24B | ||
| 7 5/8” | 48 | 60 | 72 | 84 | ||
| 9 5/8” | 48/32B | 64/32B | 80/32B | 96/24B | ||
| 9 5/8” | 48/32B | 64/32B | 80/32B | 96/24B | ||
| 11 3/4” | 60/40B | 80/40B | 100/40B | 144/36B | ||
| 11 3/4” | 100 | 120 | 140 | 180 | ||
| 13 3/8” | 100 | 120 | 140 | |||
| 14” | 60/40B | 80/40B | 100/40B | 144/36B | ||
| 14” | 100 | 120 | 140 | 180 | ||
| 16” | 240 | 180 | ||||
| 20” | 720 | 420 | ||||
| 20” | 300 | 180 | ||||
| 24” | 180 | |||||
Estilo: Direccional
Estilo: Key-Grit (CRA)
Estilo: Biselado
INSERCIONES TIPO VARCO
| Tamaño de la Herramienta | Tamaño de Tubería | Estándar | KEY-GRIT | Biselado# | Peso | Ref.# |
| 3-1/2″ | 2-3/8″ | A23-157 | A23-157-G1 | A23-157-B | 0.87 | 2160 |
| 3-1/2″ | 2-7/8″ | A23-156 | A23-156-G1 | A23-156-B | 0.64 | 2161 |
| 3-1/2″ | 3-1/2″ | A23-155 | A23-155-G1 | A23-155-B | 0.42 | 2162 |
| 4-1/2″ | 3-1/2″ | A23-160 | A23-160-G1 | A23-160-B | 0.81 | 2163 |
| 4-1/2″ | 4″ | A23-159 | A23-159-G1 | A23-159-B | 0.61 | 2164 |
| 4-1/2″ | 4-1/2″ | A23-158 | A23-158-G1 | A23-158-B | 0.42 | 2165 |
| 5″ | 4″ | A23-163 | A23-163-G1 | A23-163-B | 0.81 | 2168 |
| 5″ | 4-1/2″ | A23-162 | A23-162-G1 | A23-162-B | 0.63 | 2166 |
| 5″ | 5″ | A23-161 | A23-161-G1 | A23-161-B | 0.42 | 2167 |
| 5-1/2″ | 4-1/2″ | A23-163 | A23-163-G1 | A23-163-B | 0.81 | 2168 |
| 5-1/2″ | 5″ | A23-165 | A23-165-G1 | A23-165-B | 0.61 | 2169 |
| 5-1/2″ | 5-1/2″ | A23-164 | A23-164-G1 | A23-164-B | 0.42 | 2170 |
| 7” | 6″ | A23-210 | A23-210-G1 | A23-210-B | 0.82 | 2168 |
| 7” | 6-5/8″ | A23-167 | A23-167-G1 | A23-167-B | 0.61 | 2172 |
| 7” | 7″ | A23-166 | A23-166-G1 | A23-166-B | 0.42 | 2173 |
| 7-5/8″ | 6-5/8″ | A23-168 | A23-168-G1 | A23-168-B | 0.81 | 2632 |
| 7-5/8″ | 7″ | A23-169 | A23-169-G1 | A23-169-B | 0.64 | 2623 |
| 7-5/8″ | 7-1/8″ | A23-212 | A23-212-G1 | A23-212-B | 0.82 | 2652 |
| 7-5/8″ | 7-5/8″ | A23-170 | A23-170-G1 | A23-170-B | 0.61 | 2633 |
| 7-5/8″ | 7-3/4” | A23-186 | A23-186-G1 | A23-186-B | 0.40 | 2649 |
| 9-5/8” | 8-5/8” | A23-171 | A23-171-G1 | A23-171-B | 0.81 | 2640 |
| 9-5/8” | 8-3/4” | A23-176 | A23-176-G1 | A23-176-B | 0.75 | 2650 |
| 9-5/8” | 9-5/8” | A23-170 | A23-170-G1 | A23-170-B | 0.42 | 2633 |
| 9-5/8” | 9-3/4” a 9-7/8” | A23-186 | A23-186-G1 | A23-186-B | 0.40 | 2649 |
| 11-3/4” | 10-3/4” | A23-171 | A23-171-G1 | A23-171-B | 0.81 | 2640 |
| 11-3/4” | 11-3/4” | A23-172 | A23-172-G1 | A23-172-B | 0.42 | 2637 |
| 11-3/4” | 11-7/8” | A23-185 | A23-185-G1 | A23-185-B | 0.40 | 2651 |
| 13-3/8” | 12-3/4” | A23-173 | A23-173-G1 | A23-173-B | 0.64 | 2636 |
| 13-3/8” | 13-3/8” | A23-172 | A23-172-G1 | A23-172-B | 0.42 | 2637 |
| 13-3/8” | 13-1/2” | A23-184 | A23-184-G1 | A23-184-B | 0.40 | 2649 |
| 14” | 12-3/4” | A23-183 | A23-183-G1 | A23-183-B | 0.85 | 2657 |
| 14” | 12-7/8” | A23-178 | A23-178-G1 | A23-178-B | 0.83 | 2656 |
| 14” | 13-3/8’ | A23-173 | A23-173-G1 | A23-173-B | 0.64 | 2636 |
| 14” | 13-1/2” | A23-182 | A23-182-G1 | A23-182-B | 0.61 | 2652 |
| 14” | 13-5/8” | A23-180 | A23-180-G1 | A23-180-B | 0.52 | 2653 |
| 14” | 13-3/4” | A23-181 | A23-181-G1 | A23-181-B | 0.50 | 2655 |
| 14” | 14” | A23-174 | A23-174-G1 | A23-174-B | 0.42 | 2635 |
| 16” | 16” | A23-174 | A23-174-G1 | A23-174-B | 0.42 | 2635 |
| 20” | 18-5/8″ | A23-175 | A23-175-G1 | A23-175-B | 0.52 | 2638 |
| 20” | 20″ | A23-174 | A23-174-G1 | A23-174-B | 0.42 | 2635 |
| 24″ | 24″ | A23-174 | A23-174-G1 | A23-174-B | 0.42 | 2635 |
INSERTOS TIPO BOTÓN VARCO
Estilo: Básico
Estilo: Mediano
Estilo: Grande
INSERTOS TIPO BOTÓN PARA “DCS” DRILL COLLAR SLIPS
| Tamaño | Tipo de Slip | Estándar | KEY-GRIT | Cantidad | Peso | Ref# |
| 3″- 4″ | DCS-S | A14-628 | A14-628-G1 | 49 | 13.00 | 2632 |
| 4″- 4-7/8″ | DCS-S | A14-620 | A14-620-G1 | 49 | 8.00 | 2634 |
| 4-1/2″- 6″ | DCS-R | A14-628 | A14-628-G1 | 63 | 16.00 | 2632 |
| 5-1/2″- 7″ | DCS-R | A14-620 | A14-620-G1 | 63 | 11.00 | 2634 |
| 5-1/2″- 7″ | DCS-L | A14-513 | A14-513-G1 | 88 | 19.00 | 2521 |
| 6-3/4″- 8-1/4″ | DCS-L | A14-630 | A14-630-G1 | 88 | 15.00 | 2633 |
| 8″- 9-1/2″ | DCS-L | A14-627 | A14-627-G1 | 96 | 16.00 | 2633 |
| 8-1/2″- 1″ | DCS-L | A14-630 | A14-630-G1 | 104 | 26.00 | 2637 |
| 9-1/4″- 11-1/4″ | DCS-L | A14-630 | A14-630-G1 | 112 | 19.00 | 2633 |
| 11″- 12-3/4″ | DCS-L | A14-625 | A14-625-G1 | 136 | 20.00 | 2639 |
| 12″- 14″ | DCS-L | A14-630 | A14-630-G1 | 136 | 22.00 | 2633 |
INSERTOS TIPO BOTÓN PARA – “CMSXL” CASING SLIP
| Tamaño | Estándar | KEY-GRIT | Cantidad | Peso | Ref# |
| 6-5/8″ | A14-628 | A14-628-G1 | 144 | 0.28 | 2628 |
| 7″ | A14-619 | A14-619-G1 | 144 | 0.18 | 2619 |
| 7-5/8″ | A14-630 | A14-630-G1 | 144 | 0.14 | 2630 |
| 8-5/8″ | A14-630 | A14-630-G1 | 156 | 0.14 | 2630 |
| 9-5/8″ | A14-630 | A14-630-G1 | 168 | 0.14 | 2630 |
| 10-3/4″ | A14-630 | A14-630-G1 | 180 | 0.14 | 2630 |
| 11-3/4″ | A14-627 | A14-627-G1 | 204 | 0.30 | 2627 |
| 13-3/8″ | A14-630 | A14-630-G1 | 216 | 0.14 | 2630 |
| 16″ | A14-631 | A14-631-G1 | 252 | 0.14 | 2631 |
| 18″ | A14-625 | A14-625-G1 | 288 | 0.28 | 2625 |
| 18-5/8″ | A14-626 | A14-626-G1 | 300 | 0.30 | 2626 |
| 20″ | A14-631 | A14-631-G1 | 312 | 0.14 | 2631 |
| 22″ | A14-631 | A14-631-G1 | 336 | 0.14 | 2631 |
| 24″ | A14-631 | A14-631-G1 | 360 | 0.14 | 2631 |
| 26″ | A14-631 | A14-631-G1 | 396 | 0.14 | 2631 |
| 30″ | A14-631 | A14-631-G1 | 444 | 0.14 | 2631 |
PE Energy es un distribuidor autorizado de Keystone Energy Tools que ofrece toda la gama de productos Keystone Energy Tools. Contáctenos para una cotización personalizada.
